Generator Remote Monitoring Solution PT350
It’s Absolutely Critical that When the Power Fails the Generator Works
During a power outage, it’s vital that your emergency power system works every time! Remotely monitoring a standby generator helps to make sure that the emergency power system is ready for the next power failure. If a problem occurs, you’ll be alerted about it immediately so you can provide a fast, proactive service response.
Our PT Series monitoring products are the perfect choice for almost all standby generator applications. Our products are simple to install, very affordable, universal for all generators, and utilizes the Power Link platform. PLUS ALL PT Series monitoring products come with our lifetime warranty.
All PT Series solutions monitor and log the following standard conditions:
Generator On (Running) and Generator Off (Stopped)
Engine Battery Voltage with Low Battery Alarm
Exercise Tracker with Failed to Exercise Alert
Run Time Tracker with Excessive Run Time Alerts 4, 8, 12, & 24+ Hours
The PT Series monitors have anywhere from 4-7 additional inputs to customize any installation. These inputs can be configured to monitor any condition utilizing the outputs on the generator controller including some of the common conditions below:
Common Fault
Common Warning/Pre-Alarms
Low Fuel Level
Generator Switch Not in Auto
Low Coolant Temperature
Low Coolant Level
High Engine Temperature
Low Oil Pressure
Over Speed
Over Crank
Fuel Leak Detected
All inputs can be custom configured
Additional PT accessory kits are available to monitor other conditions including:
Utility Power On/Off – Generator Running
On Generator Power
Site Without Power
Fuel Level 50%, 25%, 10%
Return to Utility Power
Generator Breaker Open
Approximate Fuel Level Value

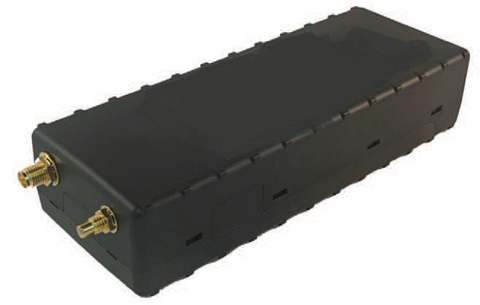

The PT350 generator monitoring system is a full featured solution for any residential, commercial or industrial indoor or outdoor standby generator. This monitor includes a custom harness, has four (4) additional programmable bias inputs and two (2) ADC inputs. The PT350 digital inputs are used with generator controller outputs and accessory kits. When configured with the appropriate accessory kits, the PT350 can log the full sequence of operation of the emergency power system.
Description:
PT350 Monitor – Fully Configured & Scripted
External Cellular & GPS Antenna
Custom Connection Harness
4 Digital Inputs
ADC Analog Inputs
3 Relay Driver Outputs
7-32VDC Power
Cellular Carrier Activation
Over-The-Air Unit Configuration and Updates
Generator On (Running)/Generator Off (Stopped)
Engine Battery Voltage Monitor with Low Battery Alarm
Generator Failed to Exercise (Missed Exercise Cycle)
Extended Run Time Alerts – Generator Running for 4, 8, 12 & 24 Hours
Remote Start Capable with Relay Driver Output
Installation pricing is based on our local Rochester & Finger Lakes Region service area. Additional charges may apply for configuration of optional monitoring parameters or service outside of our service area. Lifetime warranty and hardware upgrades for monitoring systems installed by us as long as you're on a monitoring subscription.
